AIR7311 Series Overview¶

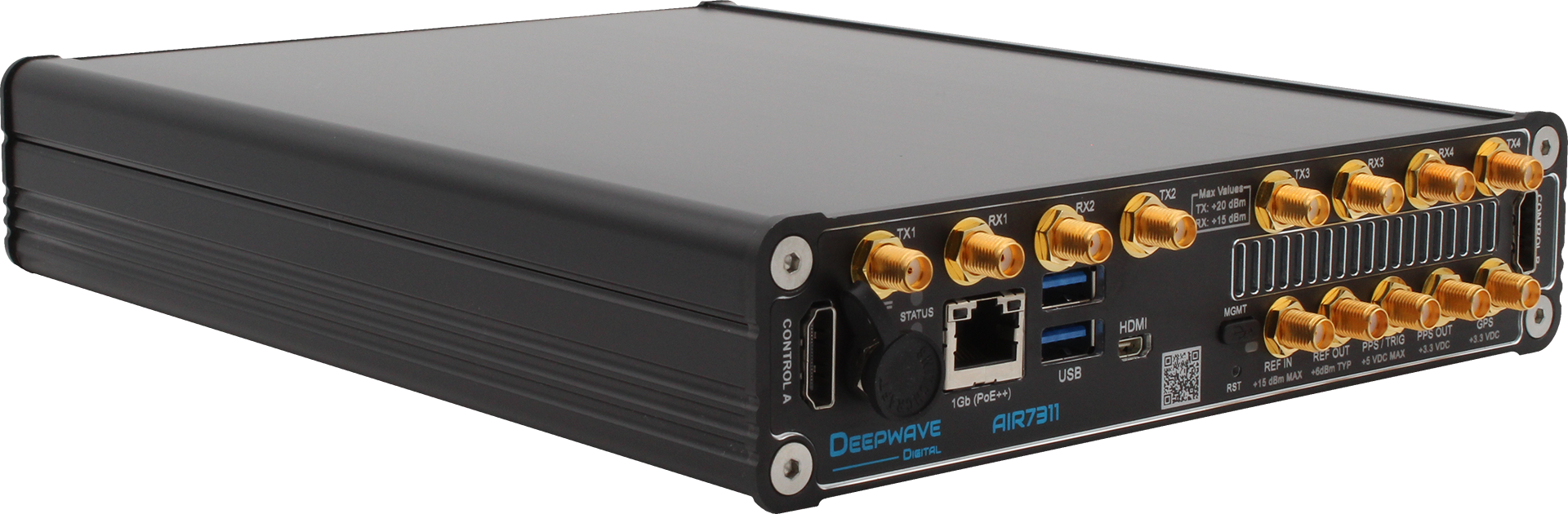

The AIR7311-B is an advanced software-defined radio (SDR) platform designed for high-performance wireless signal processing applications. Powered by the NVIDIA Jetson Orin NX 16GB, it integrates a wideband RF transceiver, a high-speed FPGA, ARM processor and NVIDIA GPU, offering unparalleled capability for real-time signal analysis and AI-driven communications. The AIR7311-B supports multi-gigahertz tunable bandwidth and is optimized for 5G, radar, electronic warfare, and spectrum monitoring systems. Its seamless compatibility with Python-based frameworks and pre-installed AirStack software simplifies deployment, while its compact design ensures reliability in both laboratory and field environments.
Part Numbers¶
| AIR-T Model | GPU | FPGA | Part Number (with Enclosure) |
|---|---|---|---|
| AIR7311 | NVIDIA Jetson Orin NX 16GB | Xilinx Artix 7 200T | AIR7311-B |
Included Items¶
Check to ensure that your AIR-T box includes the following items:
- 1 x AIR7311-B
- 1 x PoE++ power injector
- 1 x Ethernet cable - 6 foot
- 1 x Micro-HDMI to HDMI display cable - 6 foot
More information may be found on the AIR-T Product Flyer.
Technical Specifications¶
| Parameter | Value |
|---|---|
| RF Integrated Circuit | Analog Devices AD9371 (x2) |
| 4 x 4 (100 MHz bandwidth, 125 MSPS per channel) |
| Dual 2 x 2 (100 MHz bandwidth, 125 MSPS per channel) | |
| 300 MHz to 6 GHz (TX/RX) |
| +35 dB, 3.0 dB NF |
| +20 dBm |
| Embedded GPU Module | NVIDIA Jetson Orin NX 16GB |
| 1024 (Ampere), 32 Tensor cores |
| ARM 8-core Cortex® v8.2 64-bit |
| 16 GBytes shared memory |
| 2 TB NVMe (PCIe 4.0x2 M.2 2280 module) |
| FPGA | Xilinx Artix-7 200T |
| Navigation and Timing | GNSS Receiver |
| 5 ns to UTC |
| TCXO |
| Networking | 1 Gbps Ethernet |
| PoE++ |
| HDMI | 3840 x 2160 (4k) |
| Operating Temperature Range | 0°C to 50°C |
| Operating System | AirStack (Real Time Linux, Ubuntu-based) |
For detailed information, see the AIR7311-B Product Guide.
